AT89S52 Microcontroller Atmel

SKU: #1624

29SAR inc. Vat.

Description

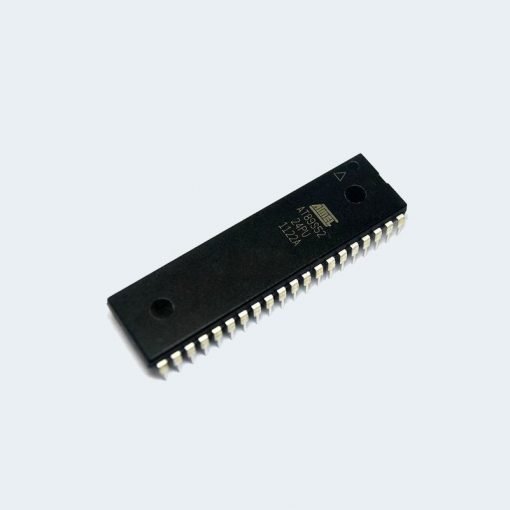

Atmel AT89S52 Microcontroller

The AT89S52 comes from the popular 8051 family of Atmel Microcontrollers. It is an 8-bit CMOS microcontroller with 8K as Flash memory and 256 bytes of RAM. Since it is similar to the trust worthy 8051 architecture these microcontrollers are as per industry standard. It has 32 I/O pins comprising of three 16-bit timers, external interrupts, full-duplex serial port, on-chip oscillator and clock circuitry.

The Microcontroller also has Operating mode, Idle Mode and Power down mode which makes it suitable for battery operated applications. Few considerable drawback of the microcontroller is that it does not have in-built ADC and does not support SPI or I2C protocols. However you can utilise external modules for the same.

Detailed Features

AT89S52 – Detailed Features
CPU	8-bit 8051 family
Architecture	8
Program Memory Size (Kbytes)	8K Flash
RAM (bytes)	256
EEPROM/HEF	Nil

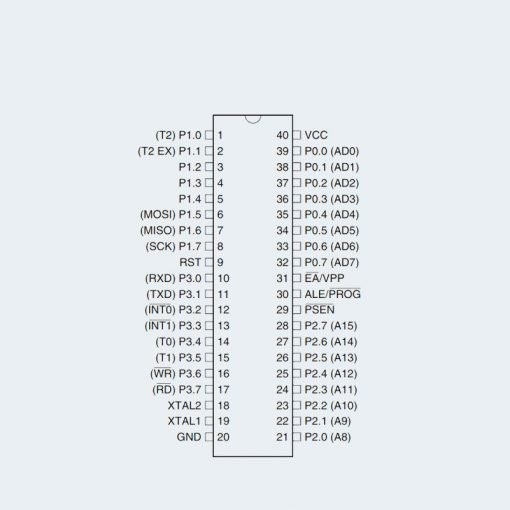

Pin Count	40
Max. CPU Speed (MHz)	33
Peripheral Pin select (PPS)	No
Internal Oscillator	No
No. Of comparators	2
No. Of Operational Amplifier	0
No. Of ADC channels	Nil
Max ADC Resolution (bits)	NA
ADC with Computation	No
Number of DAC Converter	0
Max DAC resolution	0
Internal Voltage Reference	NA
Zero Cross Detect	No
No. Of 8-bit timers	0
No. Of 16-bit Timers	3
Signal Measurement Timer	0
Hardware Limit Timer	0
No. Of PWM outputs	0
Max PWM resolution	NA
Angular Timer	No
Math Accelerator	No
No. Of UART module	1
No. Of SPI Module	0
No. Of I2C module	0
No. Of USB Module	0
Windowed Watchdog Timer (WWDT)	No
CRC/Scan	No
Numerically Controlled Oscillator	0
Cap. Touch Channels	NA
Segment LCD	0
Minimum Operating Temperature (*C)	-55
Maximum Operating Temperature (*C)	125
Minimum Operating Voltage (V)	4
Maximum Operating Voltage (V)	5.5
High Voltage Capable	No
