Solid State Relay Module SSR

سوليد استيت ريلاي

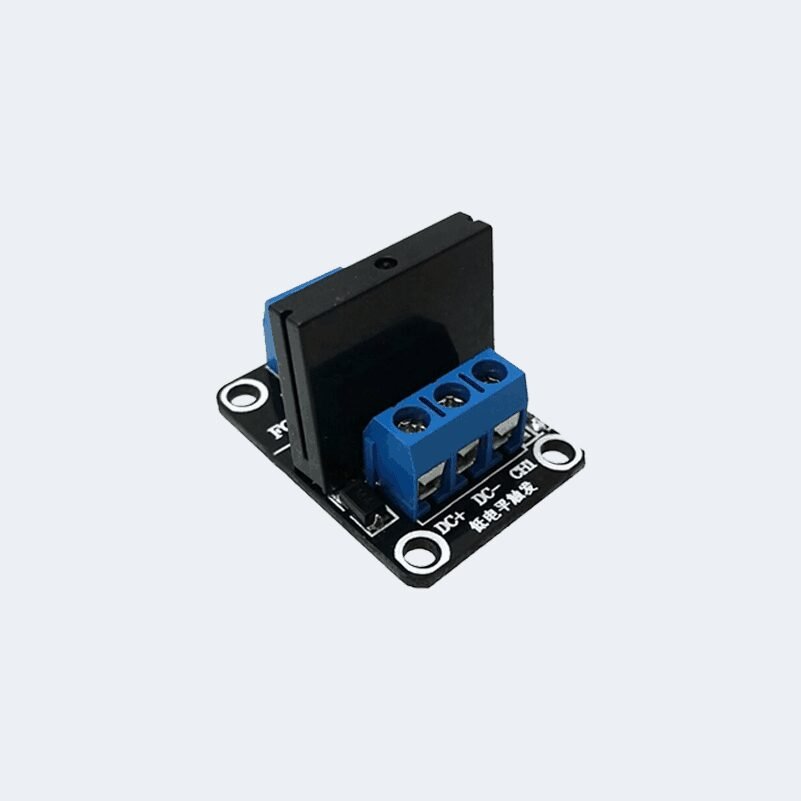

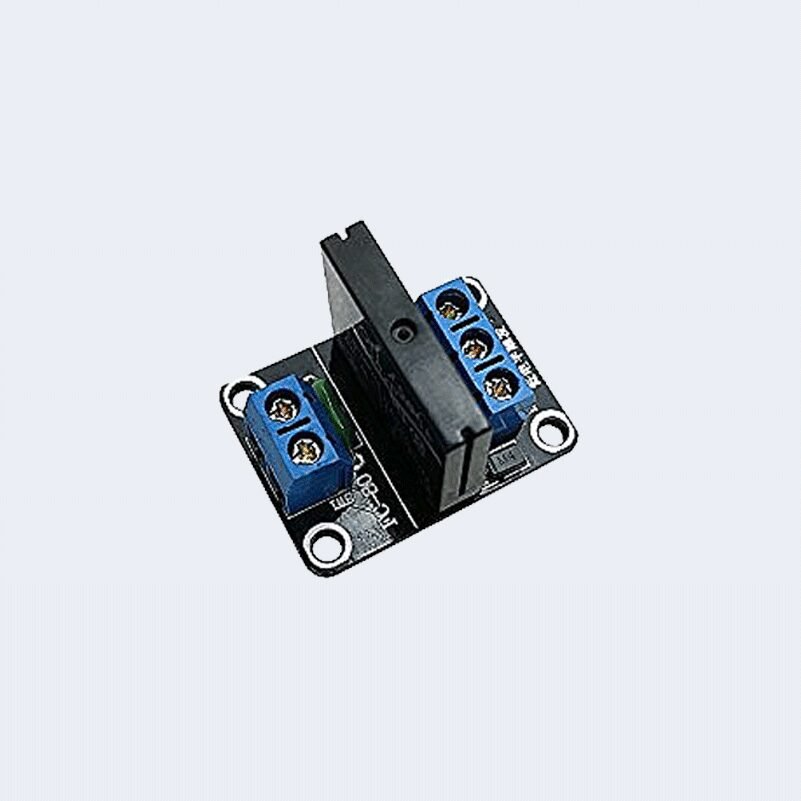

1 Channel SSR G3MB-202P Solid State Relay Module

• 5V solid state relay 240V 2A, output with resistive fuse 240V 2A
• Size: 25*34*21mm/0.98*1.35*0.82”
• Input Power: 5V DC (160mA)
• Input control signal voltage:
  (0-1.5V state low relay ON)
  (2.5-5V state high relay OFF)

Input Section:

• DC +: positive power supply (by relay voltage power supply)
• DC-: connect power negative
• CH: relay module signal to trigger the end (low level to trigger effective)
